Shandong Horizon Machinery Co., Ltd
Your Trusted Transfer Cart Manufacturer
We specialize in heavy-duty material transfer solutions, including rail transfer carts and trackless transfer carts. Customizable models are available, such as roller transfer carts, safety fence carts, and steel coil transfer carts.
- Load Capacity 1-200 Tons
- 24/7 Operation
- Trackless/Rail Dual Mode
- Trusted by 2000+ Global Clients
Customizable load capacity (5-100 tons) for steel coils, machinery parts.
Control

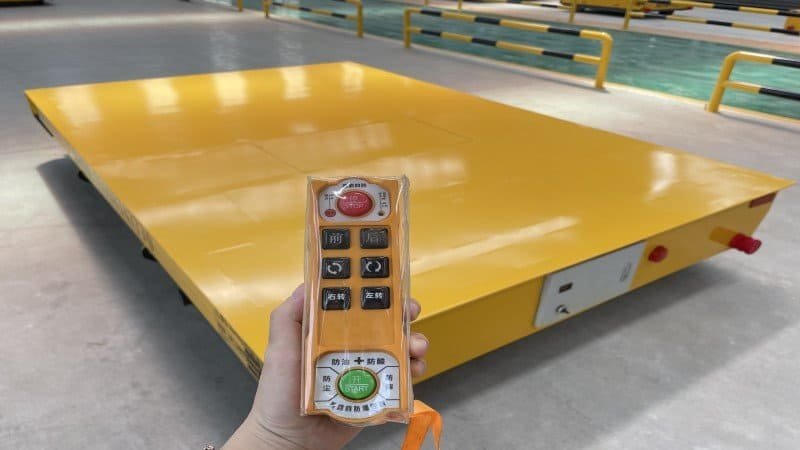

Wireless remote control + emergency stop + automatic deviation correction
IP65 protection rating, 8-hour battery life
Our products are adapted to multiple scenarios: Trackless hydraulic steering, battery-powered, low-voltage rail power supply
Our Products
We focus on various electric transferring carts, providing a one-stop material handling solution. ISO 9001 certification, CE certificates, SGS test reports for our products protection
KPW trackless hydraulic steering electric flatbed cart
Battery moving electric trackless transfer cart
KPD safety voltage rail transfer cart
KPW trackless differential steering electric flatbed cart
KPX direct current battery rail transfer cart
Lift electric transfer cart

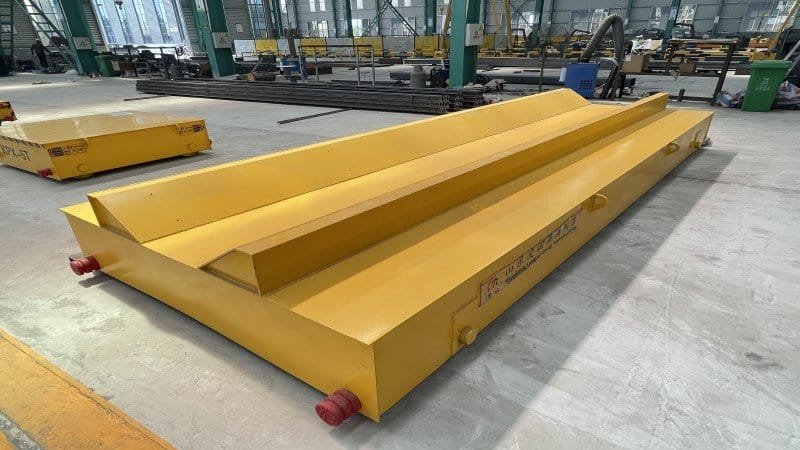

Special trackless transfer carts for steel coil handling
Trackless steel pipe electric transfer cart

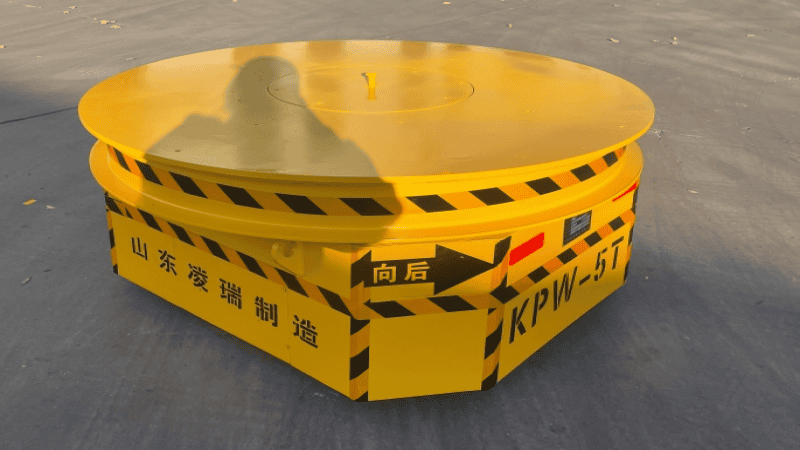

Turntable electric transfer cart
Your Reliable Transfer Cart Manufacturer

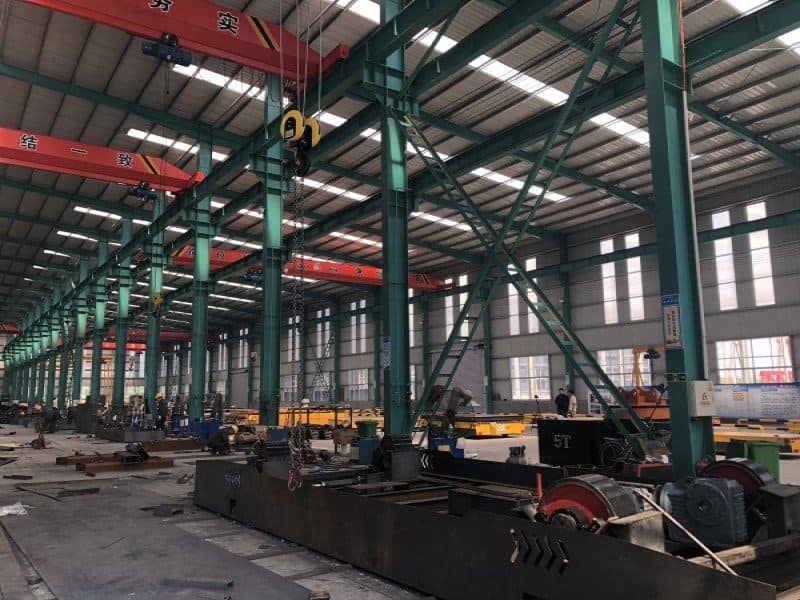

Our company has more than 10 years of experience in production and export, with a plant area of more than 20,000 square meters. Now we have all kinds of advanced production process equipment and testing equipment, the overall scale and efficiency of the industry in China in the forefront.
- OEM ODM
- Fast Delivery
- Factory Direct
- 1v1 Service
Discover Rugged, Customizable Electric Transfer Carts for Any Industry
Get Your Free Transfer Cart Design Proposal
Core Benefits
If you’re experiencing delays, high maintenance costs, or safety concerns—it’s time to upgrade your internal logistics. Our carts feature:
Load capacity from 5 to 300 tons
Track or trackless drive systems
Battery, cable reel, or rail-powered options
360° steering & auto-brake safety systems
Custom surface treatments for Geonet and corrosive materials
Whether you’re handling steel coils, molds, or other metal products, our equipment ensures seamless mobility, reduced downtime, and lower labor costs.
Watch Our Electric Transfer Cart in Action

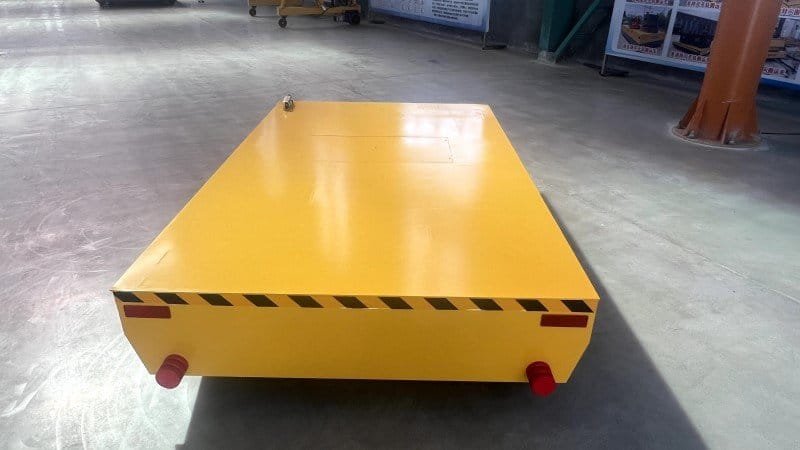

Battery Power | 360° Rotation | No Track
As a direct manufacturer of industrial transfer carts, we offer full customization—including cart dimensions, load capacity, and battery range—to meet your specific operational requirements. Whether you need to transport heavy dies, molds, or bulk materials, this flatcar delivers safe, efficient, and cost-effective transport without the need for fixed tracks.

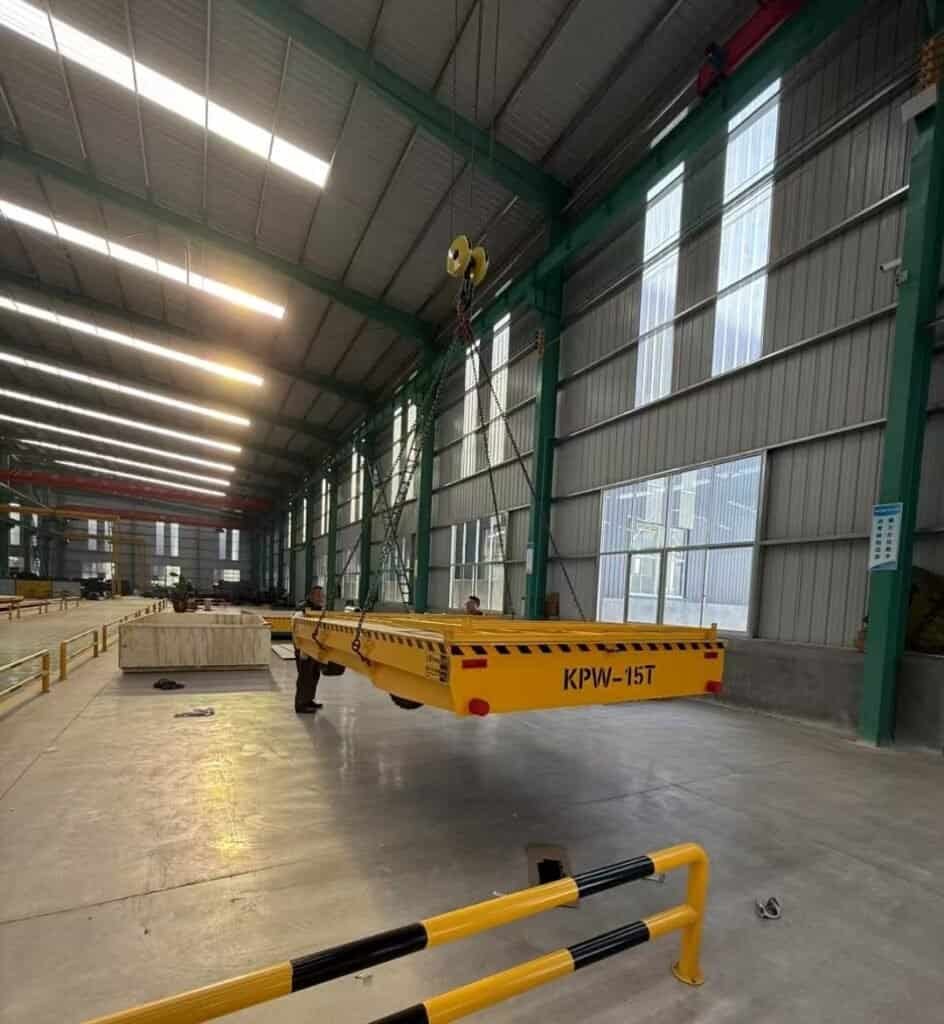

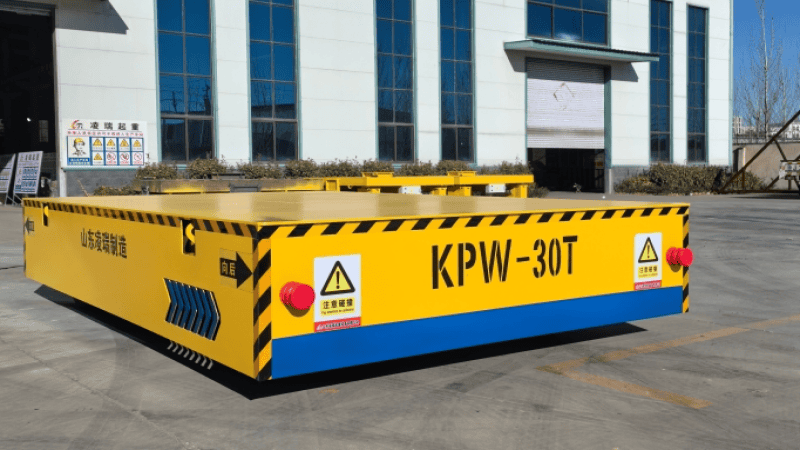

Newest Product Showcase
As a leading transfer carts manufacturer with over 10 years of engineering expertise, we offer rail or trackless transfer carts（electric flatbed cart） designed for heavy-load transportation across factories, warehouses, steel mills, and workshops. We also provide the OEM/ODM services, providing you the perfect goods according to your specific requirement.
| Item | KPW6 | KPW10 | KPW16 | KPW25 | KPW40 | KPW63 | KPW100 | KPW160 |
|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 |
| Platform Dimensions (mm) | Support customization | |||||||
| Length (L) | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 |
| Width (B) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 |
| Height (H) | 550 | 550 | 580 | 650 | 700 | 850 | 900 | 1150 |
| Running Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 25 | 20 | 20 |
| Ground Clearance (mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 |
| Wheel Diameter (mm) | 400 | 400 | 400 | 500 | 500 | 600 | 600 | 600 |
| Wheelbase (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Axle Distance A (mm) | 2000 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | 4500 |
| Motor Model / Power (kW) | XQ-2.2 | XQ-2.2 | XQ-3 | XQ-3 | XQ-5 | XQ-6.3 | XQ-6.3 | XQ-6.3×2 |
| Power Supply Method | Battery powered | |||||||
| Battery Capacity | 18Ah/48V | 210Ah/48V | 330Ah/48V | D440 | – | – | – | – |
| Reference Weight (t) | 2.7 | 3.0 | 3.8 | 4.8 | 6.3 | 8.9 | 10.8 | 23 |
| Number of Wheels / Wheel Load (t) | 4 / 2.21 | 4 / 3.31 | 4 / 5.1 | 4 / 7.51 | 4 / 11.51 | 4 / 18 | 4 / 27.51 | 8 / 22.81 |
Fast delivery. Global shipping. Localized after-sales service.
Ready to scale your operations with a proven electric flat car solution?
We provide trackless transfer carts (flexible steering), rail carts (high-precision movement), coil carts (anti-tipping design), hydraulic lift carts (height adjustable), and scissor lift carts (heavy-duty lifting). We’ll recommend models based on your load capacity, workspace, and functional needs.
Yes, we offer full customization. Load capacity ranges from 1-200 tons, with adjustable platform size, height, and control systems. 3D drawings are provided for confirmation.
Rail Power (For Rail Carts): Continuous power via sliding conductors or conductive rails, ideal for long-distance, high-frequency operations with unlimited runtime.
Battery Power (For Trackless Carts): 48V lithium battery for cordless environments, 6-10 hours runtime (supports fast charging and hot-swappable batteries).
Cable Reel Power (Universal): Automatic cable retraction (≤200m range), cost-effective for medium-distance flexible operations without rail installation.
Rail Power: 24/7 continuous operation with adjustable speed (0-20m/min). Maximum range equals track length (supports kilometer-level customization).
Cable Reel Power: Standard 150m cable (extendable to 300m). Recommend ≤10 hours per session to protect reel motor.
Standard Use: 10 hours runtime at 6km/h (no load), 6 hours at 50-ton load. Maximum distance: 60km.
Low-Temperature: Runtime reduced by ~15% at -20ºC.
All models are CE certified with overload protection, anti-collision sensors, and emergency brakes.

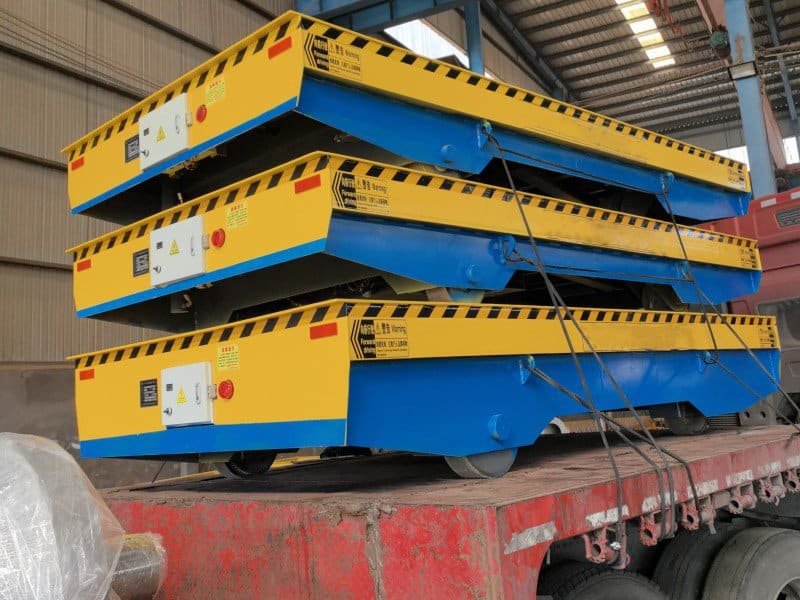

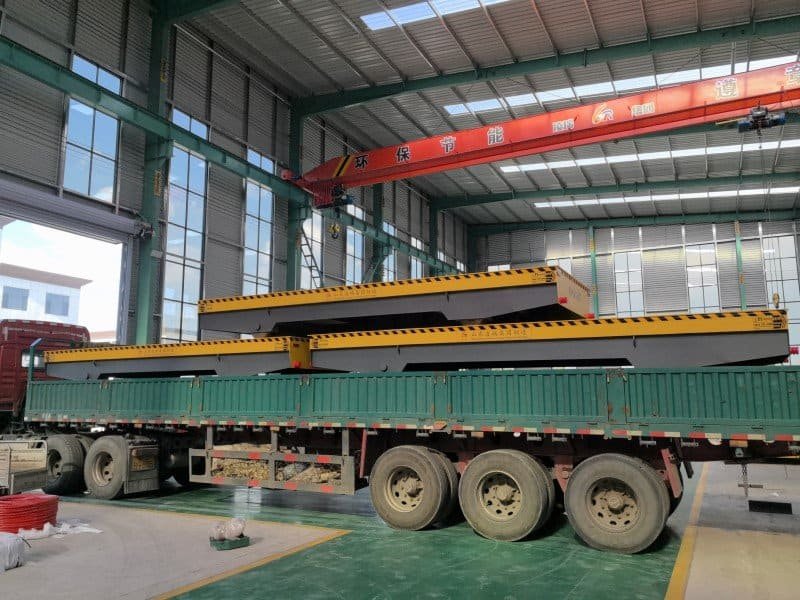

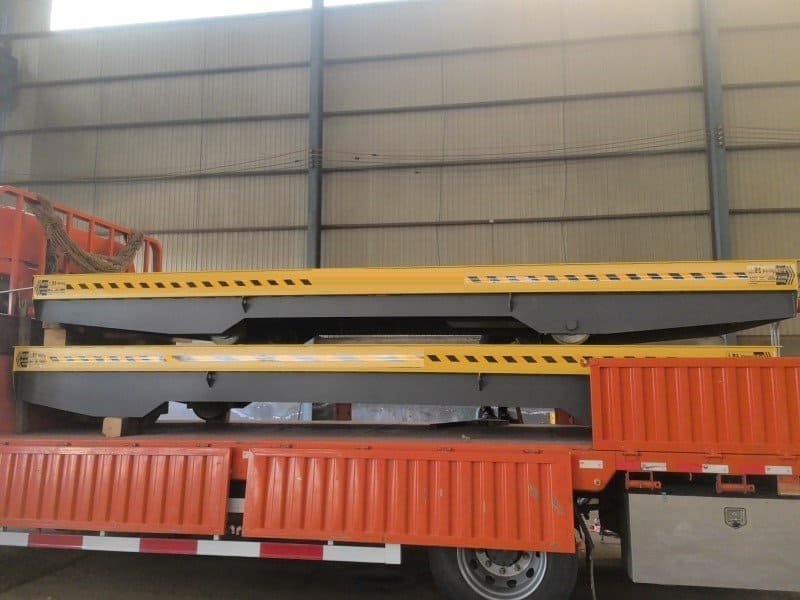

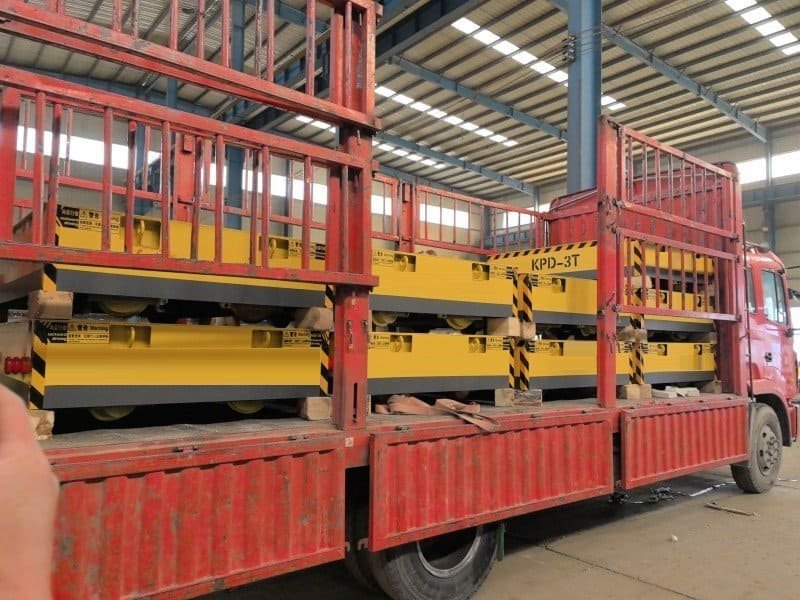

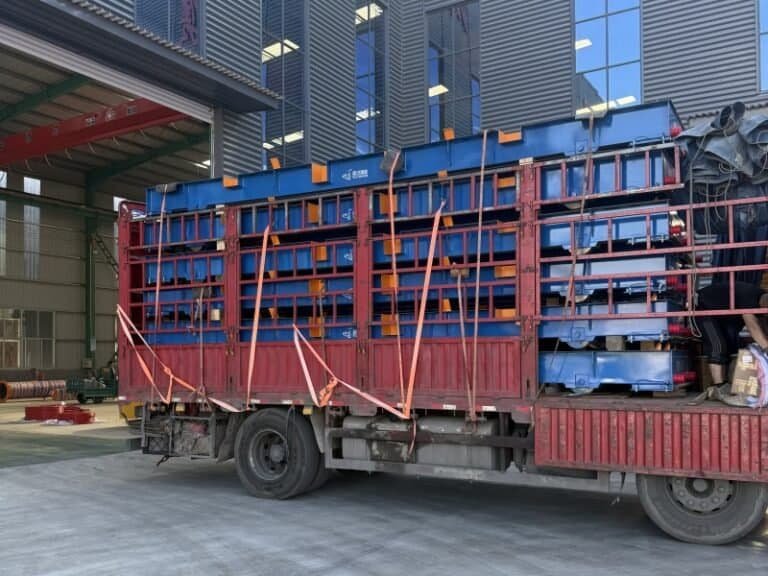

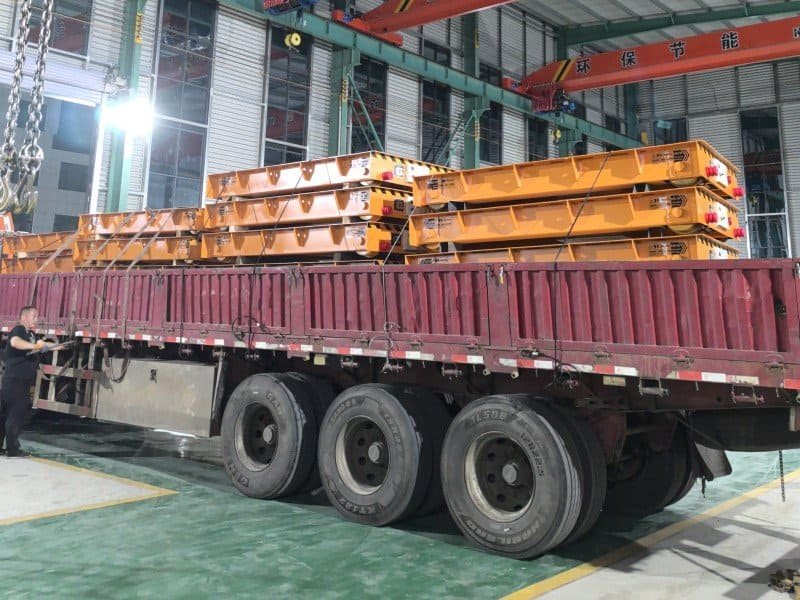

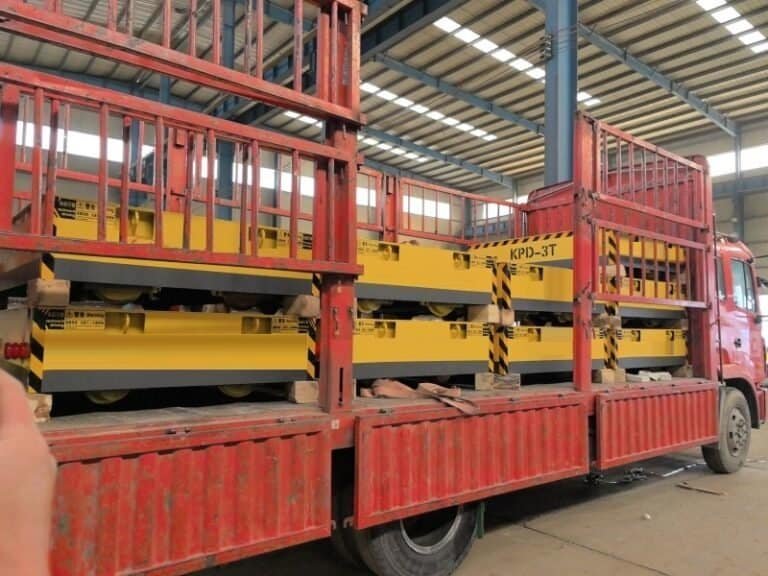

The Real Shipping Site
As a leading electric transfer carts manufacturer in China, we offer fully customizable electric flat cars that streamline in-plant logistics, reduce labor dependency, and boost your bottom line.
Partners Who Work With Us
Below are some of our partners who have come to our factory for inspection.
Our mission
It’s more than a mortgage, it’s your home
We focus on:
* Enhancing productivity with intelligent flat car systems
* Ensuring safe, smooth handling of materials like metal material and steel coils
* Providing scalable, expert-backed solutions with global logistics support
From factories to construction sites, we aim to be the go-to partner for enterprises demanding quality, customization, and consistent performance.
Feel free to ask any questions
Welcome to visit our factory anytime, our address is High-tech Industrial Development Zone,Tai'an City,Shandong Province,China.
